Horizontal high and low temperature environment test

Product overview

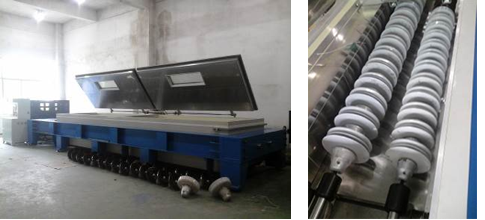

The equipment is mainly used for the performance test of 40kN~840kN class suspension insulators and synthetic insulators. The performance of the products is judged by testing, so that the product can be designed, improved, signed and used for inspection of the factory. The test operation process meets the standard JB3568. The performance index conforms to the requirements of GB / T5170.2.5 and GB5170.18 "verification method for basic parameters of electrical and electronic products environmental testing equipment".

technical parameter

Type：GDW-070
Room size：2500×1500×500mm （L×W×H）
Case size：2740×1740×820 mm
Temperature range：-40℃～+100℃
Temperature uniformity：≤±2℃ Instability：≤±0.5℃
Cooling rate：≥0.7～1.5℃ /min
Heating rate：≥2～3 ℃ /min
Power supply voltage：AC380V ±5% 50HZ Three phase four wire + grounding
Total power：19.85 K W

Environment case structure

The equipment is mainly composed of a box, a refrigeration system, a heating system, an air circulation system and a control system. The outer box is machined by numerical control machine tool. The shape is beautiful, generous and novel, and the cylinder door is opened by using the oil cylinder.

Inner material of case: the inner part of the box is made of 1mm thick imported high grade SUS304 stainless steel plate.
Shell material of case: adopt 1.2mm thick Baosteel high quality A3 carbon steel plate, after phosphating electrostatic spray processing, increase the appearance of texture and cleanliness.
Thermal insulation material: high density glass fiber cotton, the insulation thickness is 120mm, so that the indoor temperature will not be transmitted to the outside of the equipment, to ensure a stable and stable temperature in the laboratory.
Temperature sensor: platinum resistance.PT100 Omega /MV
Heater: fully independent system, stainless steel nickel chromium plate type electric heater (small overshoot).
Door frame insulation: double layer high and low temperature aging silicone rubber door sealing strip
Standard configuration: 2 sets of lighting glass windows, two test holes, according to technical requirements.
Observation window: equipped with anti condensation tape, conductive film, insulating glass observation window.
Lighting of chamber: through the window lighting device, it is easy to observe the test conditions in the laboratory.
An independent temperature limiting alarm system is set up, which automatically interrupts the temperature limit, so as to ensure the safe operation of the experiment without accidents.

Air supply circulation system

Changzhou suheng air conditioning motor (low noise)
The multi - wing blower is used for strong air supply cycle to avoid any dead angle, so that the temperature distribution in the test area is uniform. The wind pressure and wind speed are all up to the test standard, and the temperature stabilization time is fast. Heating, cooling, and complete independence of the system can improve efficiency, reduce test cost, increase life expectancy, and reduce failure rate.

Temperature controller

The use of Korean high precision temperature controller, humanized design method of operation, easy to learn, easy to use, accurate and stable measurement.

Temperature controller： accuracy：0.01℃ / Resolution：0.01℃
Sensor：PT100 sensor
Control method: heating and cooling independent, unique heat balance temperature regulation mode.

Electrical components

The Korean high precision temperature control instrument, the French "Schneider" AC contactor, the famous brand relay and other components are deli's brand, the electrical circuit design is novel and the operation is simple.

Safety protection device

Overload, short circuit protection, underphase, phase protection, and earth protection
Over temperature protection
Bigh and low overvoltage, over current, overload protection of the compressor
Fast fuse free switch
All the alarms will automatically cut off the power supply and give voice prompts to protect the equipment.
