Cut to sillting line
GENERAL

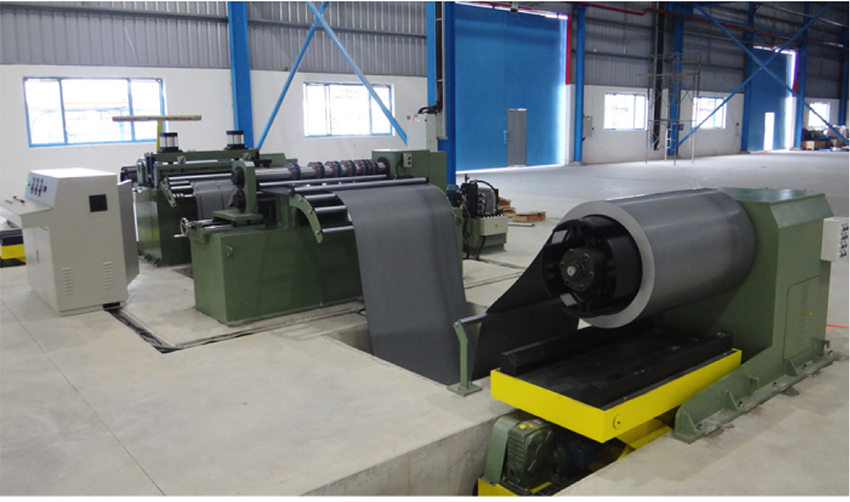

The transformer silicon steel sheet slitting production line is the silicon steel sheet cut into strips and special equipment. Mainly comprises: feeding, rewinding, feed tension, slitting, tension and other agencies. This equipment adopts the international advanced shear process, cutting tool with hard alloy rolling scissors, the programmable controller to realize the automatic control of full operation, accurate and reliable.
THE MACHINE CONSISTS OF:
| Loading trolley | 1 set |
| Slitter | 1 set |
| Tensioner | 1 set |
| Re-winder | 1 set |
| Discharging trolley | 1 set |
| Hydraulic station | 1 set |
| Control cabinet | 1 set |
MAIN TECHNICAL PARAMETER
The requirement for the steel sheet coil, as follows:
| Material | Grain Oriented electrical silicon steel sheet (Reference to international requirements) |
| Thickness of sheet | 0.23~0.5mm |
| Sheet width tolerance | ± 0.1mm |
| Max. Sheet width | 1250mm |
| Burr | ≤0.02mm |
| Inner diameter of coiled material | φ500mm |
| Grinding can be a few meters of shear | 100000m |
The requirement for the supply, as follows:
| Power | 35 KW, AC380V±10% (3-phase), 50Hz±2%; AC220V±10% (1-phase), 50Hz±2%; |
| Compressed air | Pressure ≥ 0.7 MPa, Dew point ≤ -40℃, Oil content ≤ 0.01 PPM Consumption~ 1.6 m3/min |
| Temperature | 5~40℃ |
| Humidity | ≤85% |
| Buffer pit | By the buyer |
| Foundation | By the buyer |
Processing range
| Max. width of coil | 1000mm |
| Thickness of sheet | 0.23-0.5mm |
| Strip width | 40-990mm |
| Strip burr | ≤0.02 mm |
| Slitting speed | 0-80m/min |
| Number of strips | Max.10 |
| Width of waste edge | 5-10 |
| Scissors outer diameter | φ250mm |
| Scissors trunnion | φ125mm |
| Knife number | 6-11pay |
| Straightness deviation of each edge | ≤0.2mm/m |
| Max. load of each mandrel | ≤5T |
