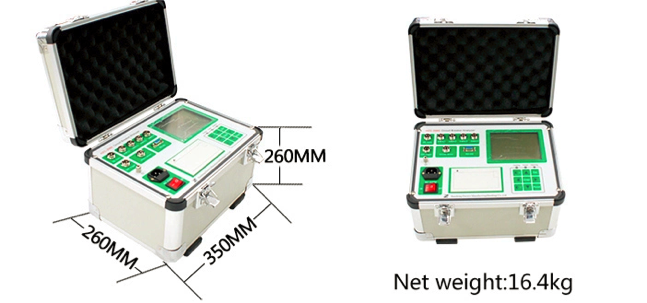

Technical proposal Circuit breaker analyzer Allen

All models suitable for domestic and foreign production of SF6 switchgear, GIS combination of electrical, vacuum switch, oil switch mechanical properties test
Super anti-jamming capability, 500KV substation the bypass bus charged case can easily test to accurately measure.
Universal speed sensor, straight line linear sensor, rotary sensor, extremely easy to install and simple.
Switching operation once obtained the switch mechanical properties testing of all data and the corresponding waveform Spectrum.
The host field test data, the machine can be stored in the real-time clock, easy to the archive save the test date, time.
Host big screen, wide temperature, direct perspective, backlight LCD Chinese display all data and maps, LCD contrast electronic adjustment, power and memory.
Chinese menu operation, easy to use. Instrument built-in printer, fast print all data and maps at any time.
The instrument with data analysis and management software, with PC online operation, the test results can be output to the various types of dot matrix, laser or ink-jet printer to print the test report, the field trials computerized.

Using Environments
Input Power: 220V±10% 50Hz±10% Air Pressure 86~106kpa
Temperature: -10~40℃ Humidity <=80%RH
Safety Performance
Insulation Resistance>2MΩ
Dielectric Strength 1.5KV power supply chassis work frequency withstand voltage 1 minute, no flashover and arcing.

The Basic Parameters

a. Time: range 4000.0ms resolution 0.1ms
Word error:
1.100ms or less 0.1ms ± 1
2. 100ms or 0.1% ± 1 word
3. the same period

b. Speed: span 20.00m / s resolution 0.01m / s
word Error
1. 0-2m / s within ± 0.1m / s ± 1 word
2. 100ms or ± 0.2m / s ± 1 word

Tips:

d. Current: 20.00A (resolution range 0.01A)

e. Output power: DC30 ~ 250V digital adjustable / 20A (instantaneous work)
