High Voltage Oil Filled Capacitor for Induction System

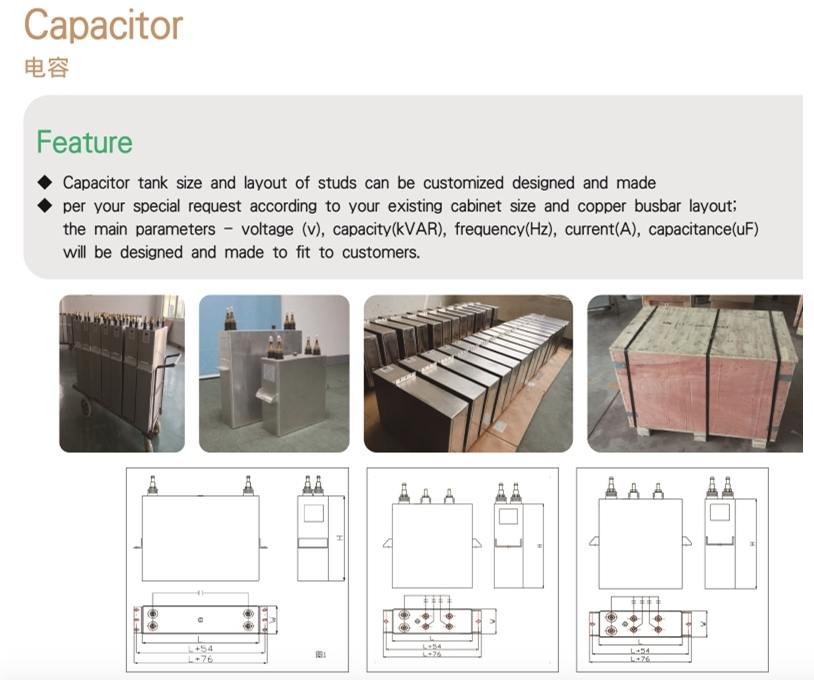

Feature
The DC filter capacitor is mainly used to filter the DC power supply to filter the high-order harmonic in the DC output voltage to reduce the voltage fluctuation and harmonic pollution, and can run for a long time under a certain AC harmonic component. Products conform to JB/T8168-1999 "Pulse Capacitors and DC Capacitors".
Product using conditions
- Elevation does not exceed 1000m, ambient air temperature - 40 ~ + 40 ~.
- Installation site without severe mechanical vibration, no harmful gases and steam, no conductivity and explosive dust.
- Continuous operating voltage 1.0Un, long-term overvoltage maximum value is not more than 1.4Un.
- The steady-state overcurrent (including harmonic current) shall not exceed 1.43 In.
- maximum allowable capacity is not more than 1.35Qn.
- structure:
The product adopts high-pressure full-film technology and manufacturing process, with the characteristics of low loss, low temperature rise, anti-overcurrent, strong resistance to inrush current, long service life and so on.
Application
Induction heating treatment, induction heating furnace, induction heating equipments.

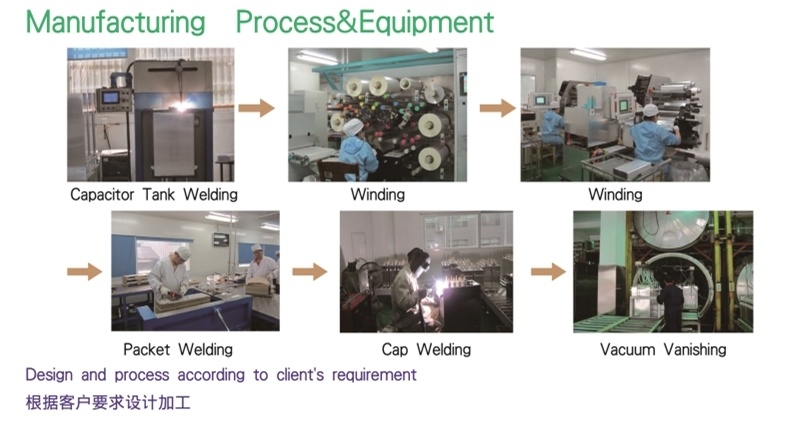

Producing Progess

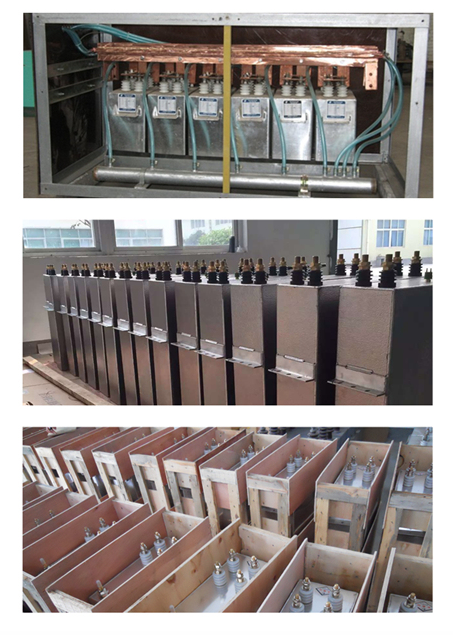

Packing pictures
