Enameled Copper Wire
Kapton Copper Magnet Wire
Diameter Range (mm):Round 1.8-4.0mm
Diameter Range (mm):a: 1.00-5.60mm b: 3.00-16.00mm
Thermal Class: 200C, 220C, 240C
Standard: GB
Breakdown voltage: can be Min 12KV
Package: Wooden spool and according to customers requirements.

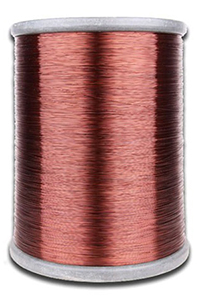

Enameled Round Copper Wire
Diameter Range (mm): 0.11-5.0
Diameter Range：AWG 4-AWG 37 SWG 5-SWG 40
Thermal Class: 130C, 155C, 180C, 200C, 220C
Standard: IEC, NEMA, GB, JIS
UL No:E338133
Package:PT4, PT10, PT25, PT30, PT60
Package:Wooden spool and according to customers requirements.
 Copper Wire.jpg)
Enameled Rectangular(flat) Copper Wire
Diameter Range (mm): thickness: 0.40-5.60mm width: 1.00-16.00mm
Width/thickness ratio: 1.4<w/t<8.0
Thermal Class: 130C, 155C, 180C, 200C, 220C
Standard: IEC, NEMA, GB, JIS
UL No:E338133
Package: Plastic spool, Wooden spool and according to customers requirements.
Edgewise Enameled Copper Wires
Diameter Range (mm): thickness: 0.40-5.60mm width: 1.00-16.00mm ;
Width/thickness ratio:1.1<w/t<10.0 ;
Thermal Class: 200C, 220C
